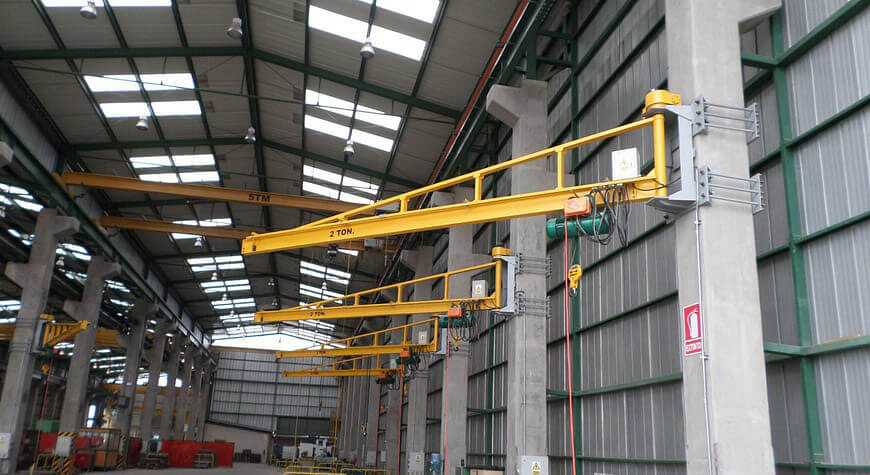

Column Mount With Existing Support Jib Cranes

Column mount jib cranes with existing support utilize existing structural columns or walls within a facility for mounting the jib arm. These cranes provide an efficient and cost-effective solution for material handling tasks, making use of the existing infrastructure to support the crane system.

Key Features and Benefits:

Space Efficiency:
Takes up minimal floor space, making it ideal for tight or congested work areas.

Versatility:
Can be used in various settings, including manufacturing, assembly, and maintenance.

Ease of Installation:
Relatively straightforward to install compared to other types of cranes.

Flexibility:
Can rotate 180 to 360 degrees, providing a wide range of motion for handling materials.

Types:

Wall-Mounted Jib Crane

The jib arm is mounted directly to a wall or vertical surface, providing a cost-effective and space-efficient solution.

Column-Mounted Jib Crane

The jib arm is attached to an existing structural column, allowing for efficient use of space and existing supports.

Typical Assignments Executed By Us

1.) Manufacturing Plants: For moving materials and components within production areas.
2.) Warehouses: For loading and unloading goods in storage areas.
3.) Maintenance Areas: For lifting and positioning machinery and equipment.
4.) Workstations: Providing ergonomic lifting solutions for assembly, repair, or inspection tasks.

a) Regular Inspections: Essential to ensure all components are in good working order and the existing structure can support the crane.
b) Proper Lubrication: Keep moving parts lubricated to reduce wear and tear.
c) Training: Operators should be trained in the safe use of jib cranes and aware of load limits.
d) Safety Features: Implement overload protection, emergency stop buttons, and warning devices.

1. Structural Integrity:
Ensure the existing column or wall can support the additional load of the jib crane and its maximum lifting capacity.
2. Mounting Hardware:
Use appropriate mounting hardware and techniques to secure the jib crane to the existing structure safely.
3. Clearance:
Ensure there is sufficient clearance around the jib crane for safe operation and movement of loads.
4. Load Testing:
Perform load testing after installation to verify the crane's stability and load-handling capabilities.
